cold hot water polypropylene PPR pipes
Product Details:
| Place of Origin | Zhejiang, China (Mainland) |
|---|---|
| Brand Name | Amico |
| Model Number | PN10~PN20 |
| Material | PPR |
| Specification | DN20~DN160 |
| Length | 4m |
| Thickness | 2.0~18.3mm |
| Standard | DIN8077/8078 |
| Color | green,grey,white. |
Payment & Shipping Terms:
| FOB Price: |
US $ 0.1-8/ Meter Get Latest Price |
|---|---|
| Minimum Order Quantity: | 1000 Meter/Meters |
| Port: | NINGBO |
| Packaging Details: | carton |
| Delivery Time: | depends on quantity |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 Ton/Tons per Year |
Detailed Product Description
Amico PPR pipes from 16 to 160mm, Pressure rating available in 1.25MPa, 1.6MPa, 2.0MPa 2.5MPa, CE, ISO9001, ISO14001certificates

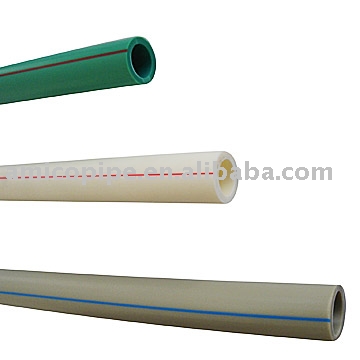

Amico PPRs pipe
Features:
- Material: Random Polypropylene
- Sizes: 20 to160mm
- Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
- Colors: light grey, white or other colors on request
- Connection: socket fusion joint, electro fusion joint or transition joint

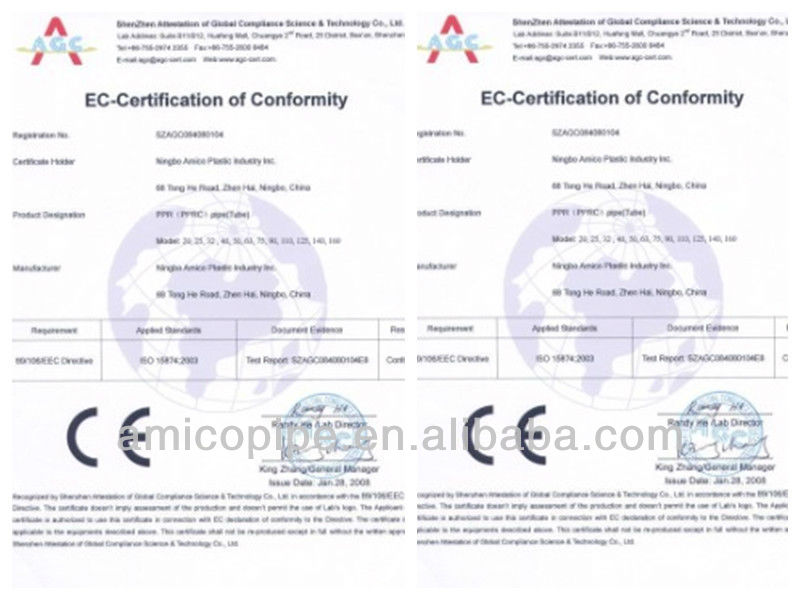

- Certification: ISO9001, ISO14001, OHSAS18001
- Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation
Advantages:
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
PP-R Water Supply Pipe
| PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Outer Diameter dn(mm) | Wall Thickness en (mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) |
|
|
|
|
|
20 | 2 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.1 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15 |
110 | 10 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.6 |
For more details and price list. send a inquiry now !
